Why 6063-Grade Aluminium Is Preferred for Modern Window Systems

Most homeowners shopping for aluminium windows focus on design, price, and colour options. Almost no one asks what grade of aluminium the frame is actually made from — yet that single specification determines how well the window resists corrosion, how cleanly it finishes, how precisely it's fabricated, and how long it holds its form under real-world conditions. In Kerala's coastal humidity and monsoon climate, it matters more than almost anywhere else in India.
The industry's answer to that question, consistently, is 6063-grade aluminium. Here is what that means, why it became the standard for window systems, and what it looks like in practice.

Often referred to as "architectural aluminium", 6063 is a magnesium-silicon (Mg-Si) alloy in the 6000 series, widely used in windows, doors, curtain walls, shopfronts, and façade systems. It accounts for over 70% of all aluminium extrusions produced globally — a figure that reflects just how dominant this grade has become in construction.

Its composition includes carefully balanced amounts of magnesium and silicon, which give it an excellent combination of strength, corrosion resistance, and workability. The alloy is also heat-treatable and weldable, with its composition specifically balanced to prioritise surface quality and the ability to be extruded into complex, thin-walled cross-sections with tight dimensional tolerances.

Those properties do not all travel together in every alloy. 6063 is valuable precisely because it delivers all three in combination — which is why it has earned a strong and lasting reputation in the construction industry.

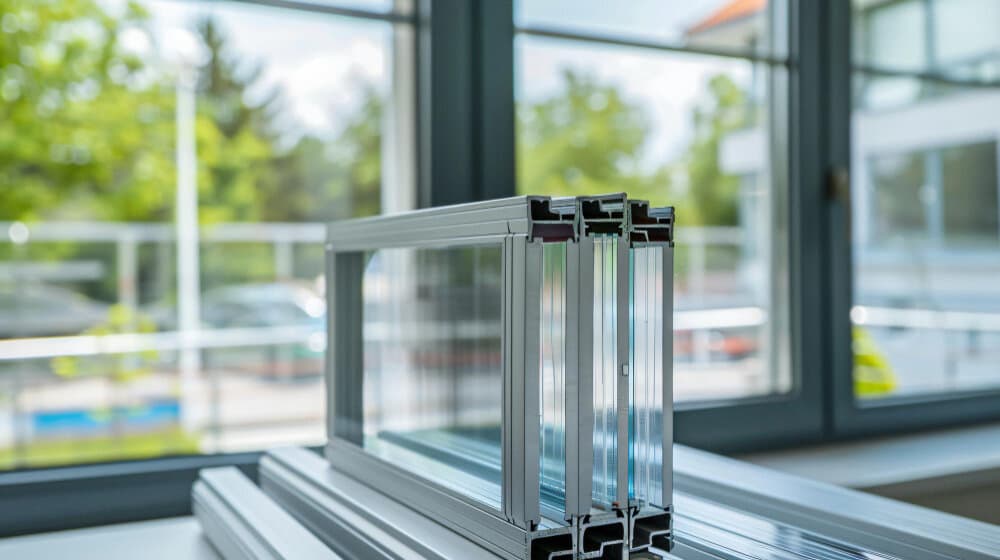

Modern aluminium windows are far more advanced than simple metal frames. To understand why 6063 matters, it helps to understand what extrusion actually does. Window profiles are not cut or cast — they are extruded: the aluminium alloy is heated and forced through a shaped steel die under high pressure, emerging as a continuous profile with the exact cross-section the die describes. That profile might include multiple internal chambers, drainage channels, seal grooves, and reinforcement sections — all formed in a single pass.

6063's lower magnesium and silicon content compared to stronger alloys like 6061 makes it significantly more fluid during extrusion. This means:

Complex multi-chamber profiles can be formed without wall tears, surface cracking, or dimensional drift
Thinner walls can be held to tight tolerances, reducing weight without sacrificing profile geometry
Drainage channels, internal reinforcement ribs, and gasket grooves — the features that make a system window perform — can be extruded cleanly rather than machined in afterward

This extrudability is not a minor technical detail. The engineered internal geometry of a system aluminium window is what separates it from a conventional aluminium window: it is what allows water to be drained outward, air seals to be compressed evenly, and the frame to resist wind deflection without excessive mass. All of that depends on being able to extrude precise, consistent profiles — which is exactly what 6063 makes possible.

Anyone living in Kerala understands how demanding the weather can be on building materials.

Long monsoon seasons, high humidity levels, and coastal exposure can accelerate corrosion if the wrong materials are used. Fortunately, aluminium naturally develops a protective oxide layer on its surface when exposed to air — and 6063 performs exceptionally well in this regard.

Unlike steel rust, which is porous and allows continued corrosion underneath, aluminium oxide is dense and self-sealing. It essentially repairs itself when scratched at the surface, preventing corrosion from progressing into the metal below.

Among common structural aluminium alloys, 6063 has particularly strong atmospheric corrosion resistance because of its low copper content. Copper increases strength but reduces corrosion resistance; 6063's composition keeps copper near zero, which is why it performs well in humid, salt-laden, and chemically active environments. If you're exploring why aluminium is the right material choice for Kerala homes, this guide covers the full picture."

For homes in Kerala — especially coastal Kochi, the backwater districts, and areas exposed to monsoon winds carrying salt and moisture — this matters over a long time horizon. A window installed today will face roughly 100 monsoon months over the next decade. Corrosion that begins at poorly sealed joints, scratched surfaces, or inferior alloy sections compounds year on year. 6063's inherent corrosion resistance, combined with quality powder coating or anodising, makes it the right material for this environment — not a premium upgrade, but the appropriate baseline choice.

A window frame is not only a structural component — it is also a visible design element seen up close every day, in a living room, corridor, or glass-fronted office.

One of the reasons architects favour 6063 is the quality of finish it delivers after extrusion. The surface is naturally smooth — smoother than any other commonly used structural aluminium alloy — and that smoothness directly affects how well protective coatings adhere to the profile.

Powder coat applied to a 6063 profile adheres evenly, without the grain telegraphing through the paint that can occur on rougher alloys. Anodising, which forms an integral oxide layer into the aluminium surface rather than sitting on top of it, produces a uniform and consistent colour because the alloy's consistent composition anodises at a predictable rate.

The result is a finished window that achieves a cleaner, more refined appearance. Colours remain more consistent, coatings adhere better, and the overall aesthetic stays attractive for longer. Powder-coated 6063 profiles, properly sealed at installation, do not require repainting — a maintenance cost eliminated entirely compared to timber or lower-grade metal alternatives.

While researching aluminium windows, you may come across terms such as 6063-T5 and 6063-T6. These designations refer to the heat-treatment process applied to the alloy after extrusion, which determines its final mechanical strength.

6063-T5 is air-cooled directly from the extrusion process, then artificially aged. It produces a good surface finish and is the most common temper for residential window and door profiles, where fabrication ease and visual quality are the priority.

6063-T6 involves a full solution heat treatment followed by artificial ageing, producing higher tensile strength. It is preferred where structural loading is greater — large commercial façades, high-rise curtain walls, or windows designed to handle heavier glass panels and larger opening dimensions.

For most homes, T5 profiles provide more than enough performance. T6 is typically selected for specialised applications where the specification demands it for heavy glass or large spans.

Not all aluminium windows are manufactured using certified architectural-grade alloys.

Many low-cost fabricators use extrusion profiles without a declared alloy specification — sourced as commodity sections where the grade may vary batch to batch, or where recycled aluminium has been blended without verified composition control. This is common in the unorganised fabrication sector and is rarely disclosed to the buyer.

Unspecified or off-grade aluminium can present as normal in appearance and feel at the point of purchase. The differences emerge over time: inconsistent hardness across sections causing frames to flex unevenly; finishes that peel or chalk because the surface was not suitable for the coating applied; corrosion that begins at joins and spreads behind the seal. None of these failures are immediately visible, which is why they tend to become apparent only years after installation — long after the purchase decision has been made.

Asking a window manufacturer "is this 6063?" is a simple but important step. A reputable manufacturer will answer immediately — because they specify it, test to it, and know it. Vague answers, or reframings toward brand names rather than alloy grades, are informative in their own way.

Also check: 5 practical tips for choosing the right aluminium windows

At Bebeto Alumina Systems, every profile is developed around the performance requirements of modern window engineering.

The choice of 6063 aluminium allows the creation of sophisticated profile designs that incorporate multiple chambers, drainage paths, sealing zones, and other performance-enhancing features — all of which depend on being able to extrude precise, consistent profiles. Its durability and corrosion resistance also make it particularly well suited to Kerala's coastal and monsoon environment.

The window range is designed to support glass thickness from 5mm to 20mm, including single glass, laminated glass, and double-glazed units (DGU) — covering the full range of insulation and safety requirements from standard residential openings to thermally efficient or acoustic-grade installations. Shutter weights up to 120 kg and heights up to 2400 mm are supported, making the system appropriate for large openings such as floor-to-ceiling glass panels and wide sliding systems.

The door range carries the same specification: 6063-grade profiles, glass thickness from 5mm to 20mm with laminated and DGU options, shutter weights to 120 kg, and heights to 2400 mm — engineered for sliding systems, large entrances, and structurally demanding applications.

Also check: Aluminum vs uPVC Doors: Which is a Better Choice for Homes in Kerala?

By combining engineered system designs with high-quality 6063 aluminium profiles, Bebeto Alumina Systems delivers windows and doors that offer lasting performance, reliability, and visual appeal — for Kerala's homes and commercial buildings alike.

1. What does the 6063 grade mean for a window buyer?

The 6063 grade indicates that the window frame is made from a high-quality architectural aluminium alloy — a magnesium-silicon alloy with defined corrosion resistance, smooth surface finish, and reliable long-term performance. When a manufacturer specifies 6063, they are committing to a material standard, not just a shape.

2. Is 6063 aluminium strong enough for large window openings?

Yes. When engineered correctly — especially in T6 temper — 6063 aluminium can support large window and door systems while maintaining structural stability. Systems like Bebeto's support shutter weights up to 120 kg and heights up to 2400 mm, covering most residential and commercial large-opening requirements.

3. How long does 6063 aluminium last in Kerala's climate?

With proper finishing such as anodising or powder coating, and correct installation sealing, 6063 aluminium window frames typically last 30 to 40 years in Kerala's humid and coastal conditions without structural degradation or significant corrosion.

4. What is the difference between 6063 and 6061 aluminium for windows?

6063 offers better extrusion quality, a smoother surface finish, and superior corrosion resistance. 6061 generally provides higher mechanical strength but has higher copper content, reducing its resistance to atmospheric corrosion, and is harder to extrude into complex architectural profiles. This is why 6063 is the standard for window profiles, while 6061 is used more in structural components where maximum strength is the priority.

5. Can 6063-grade windows support double glazing (DGU)?

Yes. 6063 profile systems are designed to accept glass from 5mm to 20mm thickness, including double-glazed units. DGU glass significantly increases shutter weight, which is one reason the 120 kg weight capacity in these systems matters — it accommodates both the glass weight and the hardware load across the full range of glazing options.

6. How do I know if my aluminium window is made from 6063?

Ask the manufacturer or supplier for the profile specifications. A reputable manufacturer should be able to clearly identify the material used in its profiles and confirm whether 6063-grade aluminium is being used. Vague or evasive answers are themselves informative.
